伟顿工业型扫地车W1880
伟顿工业型扫地车W1880
产品型号:W1880
产品材料:
产品简介:
伟顿扫地车W1880拥有工业型内置吸力系统,800W的风机,10平方米过滤面积,专业解决工业灰尘厚重等污染问题。配备减震系统,保护机器零部件因松动造成的机器故障,并提高驾驶舒适性。自动振动技术,无需停机振尘,保障滤芯通畅,提高机器的吸尘效果。主边刷一体化控制,拉杆调节,操作简单方便,人性化。大垃圾箱容量,减少垃圾倾倒次数,减轻清洁工劳动强度,节省工作时间。

详细参数:
技术参数 TECHNICAL PARAMETERS:
1.清扫宽度 Working Width:1850-1950mm
2.清扫效率  Productivity:≥13000㎡/h
3.续航时间 Continuous Work Time:6-8h
4.垃圾箱容量 Waste Hopper Capacity:195L
5.过滤器面积(滤芯)Filter Surface:10㎡
6.主刷尺寸 Length of Main Brush:800mm
7.边刷尺寸 Diameter of Side Brush:500mm
8.行驶速度 Max Driving Speed:18km/h
9.清扫速度 Max Working speed:7-18km/h
10.爬坡能力 Gradeability:30度
11.电压 Voltage:48V
12.整机重量 Net weight :920Kg
13.作业功率 Working Power:(风机Vacuuming800+主刷Main Brush750+边刷Side Brush80x4+振尘Vibration90) =1960W
14.驱动功率 Driving Power(Motor):3000W
15.总功率 Total Power:4960
16.雾式喷水水箱 Water Tank Capacity:30L
17.遮阳顶棚 Sunshade:标配
18.挡风玻璃 Windscreen:选配
19.尺寸(长*宽*高)Dimension(L/W/H):2200*1900*1860
20.包装尺寸(长*宽*高)Packaging Size(L/W/H):2350*1400*1580

产品特点:
1.超大电能储备续航时间长:8个200Ah胶体免维护动力电池组,可持续工作6-8个小时。2.超强吸尘系统:800W的风机电机,10平方米超大过滤面积,配合强负压离心式铝合金风叶,比同类型扫地机高双倍的吸尘效率,专业解决恶劣粉尘环境的扬尘问题。
3.超强爬坡能力:采用3000W大扭矩他励驱动电机,设计3倍过载能力,稳定可靠,爬坡能力和汽车媲美。
4.驱动桥:超无级变速后桥,铝合金箱体,修形研磨齿轮设计,无噪音,重量轻,不漏油,更耐久更可靠。
5.控制器:采用美国KELLY品牌控制器,确保动力输出平稳,性能卓越。
6.专利车身减震系统:减少机器因震动造成的机器故障率,提升操控舒适性。
7.超强刹车性能:水平路面全速行驶的情况下,2米内刹车,安全可靠。
8.195L超大垃圾箱容量:
9.滤芯清理便捷:外置吹尘导管,日常滤芯清理,无需拆下滤芯,简单快捷。
10.维护方便:后掀市设计,所有内部件一目了然,清洁工也能进行建议故障排除。
11.综合性能稳定:工业级设计制造标准,性能稳定,维修成本低。
12.效率高:每小时工作效率可达13000平方米/每小时,一部机器可以代替12-16个劳动力。

PRODUCT FEATUES:
1.U/ltra-long Continuous Working Time:8PCS of 200Ah gel maintenance-free power batteries.Its power durability can ensure 6-8hours of continuous working.
2.Super Vacuum System:800W vacuum motor,10sq.m large filtering area,with strong negative pressure centrifugal aluminum blades,higher than the same type sweeping machine with double dust collection efficiency,specialized to solve the problem of the dusty environment.
3.Super Gradeability:With 3000W high torque separately excited drive motor,designed with 3 times overload capacity,stable and reliable,and has the equivalent climbing ability of the cars.
4.Drive Axle:Ultra-quiet CVT(Continuously Variable Transmission)rear driving axle,with aluminum alloy enclosure and good-look grinding gear design,no noise,light weight,no leaking ,more durable and reliable.
5.Controller:Use thd U.S. "Kelly" brand controller,and ensure the smooth power output.The performance is remakable.
6.Patented body Damping System:Reduce thd machine failure rate caused by vibration and improve the comfort.
7.Super Brake Performance:Can be breaked within 2m along smooth road under the condition of full-speed operation.
8.195L Large Hopper Capacity:Can reduce the times of dumping garbage,mitigate the labor strength of cleaner,and save work time.
9.Easy Cleaning for Filter Roller:W/external dust-removal pipe for daily filter roller cleaning,no need to remove the fitler roller,simple and quickly.
10.Convenient Maintenance:With rear-lift type design,all internal parts are clear at a glance ,and cleaner can also perform simple troubleshooting.
11.Stable Performance:W/industrial-level design and manufacturing standard,stable performance,low maintenance cost.
12.High Efficiency:Maximum woking efficiency per hour is up to 13000/h,and a machine can replace 12-16labor force.

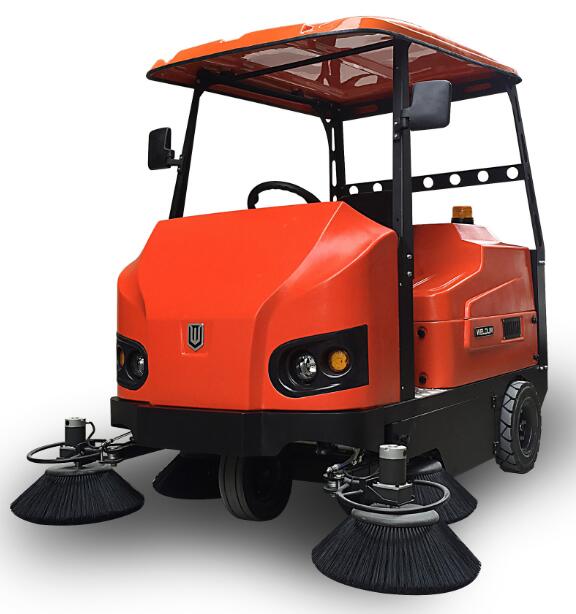

伟顿工业型扫地车W1880机身图
